Appendix B - Out of the box Logic Scripts

EPMware provides a comprehensive library of out-of-the-box Logic Scripts that are automatically assigned to applications upon creation. These standard scripts handle common validation and automation requirements across different EPM application types.

Standard Validation Scripts

This section will provide a list of all standard validation Logic Scripts that are supplied as out of the box Logic Scripts and also get automatically assigned when their corresponding applications are registered in EPMWARE.

Note:

Important

If you need to modify any of these scripts, either create a new one by making a copy of it or create a new one with additional logic in it. It is possible that EPMware updates or Patch releases may modify these scripts in future releases.

Standard Property Validations

The following Logic Scripts are of “Property Validation Types” and are automatically assigned to the Applications as soon as they are registered under Application Configuration page.

Logic Script Name Application Types
EW_ESSBASE_VALIDATIONS Essbase (On Prem and Cloud)
EW_HFM_VALIDATIONS HFM
EW_HP_VALIDATIONS Planning (On Prem and Cloud)
EW_PCMCS_VALIDATIONS Oracle PCMCS Cloud
EW_TRCS_VALIDATIONS Oracle TRCS Cloud
EW_FDMEE_VALIDATIONS Oracle FDMee (OR Data Management)
EW_FUSION_VALIDATIONS Oracle EBS (Fusion)
EW_ONESTREAM_VALIDATIONS OneStream Applications (On Prem and Cloud)


Script Names starting with EW* are EPMWare Standard Scripts

Standard Validations Assignment

Pre-Hierarchy Action Scripts

The following Logic Scripts are of “Pre-Hierarchy Action Types” and are automatically assigned to the Essbase Applications as soon as they are imported into EPMWARE. The purpose of this Logic Script is to ensure Shared Nodes do not come prior to its Primary instance in the hierarchy.

Script: EW_SHARED_NODE_POSITION

📜 Script Details

Field Description
Script Name EW_SHARED_NODE_POSITION
Application Type Essbase (On Prem and Cloud), Planning, PBCS

🎯 Purpose

This Script checks whether a Shared Instance of a member comes before to its Primary instance.

⚙️ Configuration

  • The script is automatically assigned to all dimensions
  • Applicable to Essbase and Planning applications
  • Assignment happens during application import into EPMWARE

Please refer to the example below for a typical configuration assignment.

Shared Node Position Configuration

Script: EW_ONESTREAM_SHARED_NODE_CHECK

📜 Script Details

Field Description
Script Name EW_ONESTREAM_SHARED_NODE_CHECK
Application Type OneStream

🎯 Purpose

The logic script EW_ONESTREAM_SHARED_NODE_CHECK is a standard OneStream logic script that is automatically assigned to all Extended Dimensions when a OneStream application is imported.

This script prevents users from creating a shared instance of a member in an extended dimension unless the shared instance belongs to the same extended dimension.

⚙️ Configuration

  • The script is automatically assigned to all Extended Dimensions
  • No manual configuration is required
  • Applies only to OneStream applications

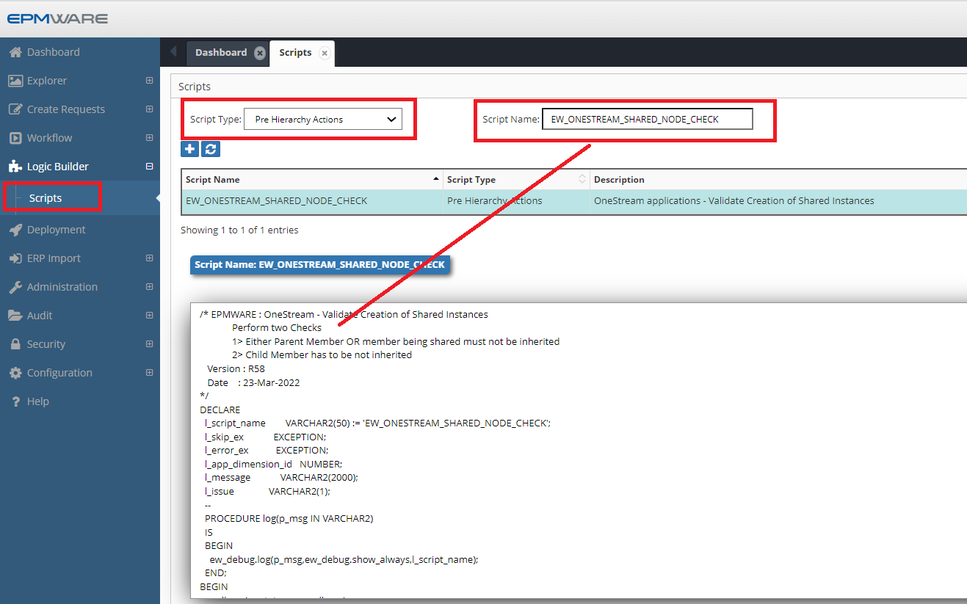

OneStream Shared Node Check

OneStream Shared Node Association

Post-Hierarchy Action Scripts

The following Logic Scripts are of “Post Hierarchy Action Types” and are not automatically assigned to the target Applications. They need to be assigned manually if required..

Script: EW_EB_DATA_STORAGE_PROP

📜 Script Details

Field Description
Script Name EW_EB_DATA_STORAGE_PROP
Application Types Essbase (On-Prem & Cloud)

🎯 Purpose

For Essbase applications, this logic script ensures that the Data Storage property is set to Dynamic Calc whenever a base member becomes a parent member.

This helps maintain correct aggregation behavior and prevents invalid storage settings.

⚙️ Configuration

  • This script is not assigned automatically
  • Manual configuration is required
  • The script must be assigned as a Post-Hierarchy Action

Please refer to the example below for the manual assignment configuration.

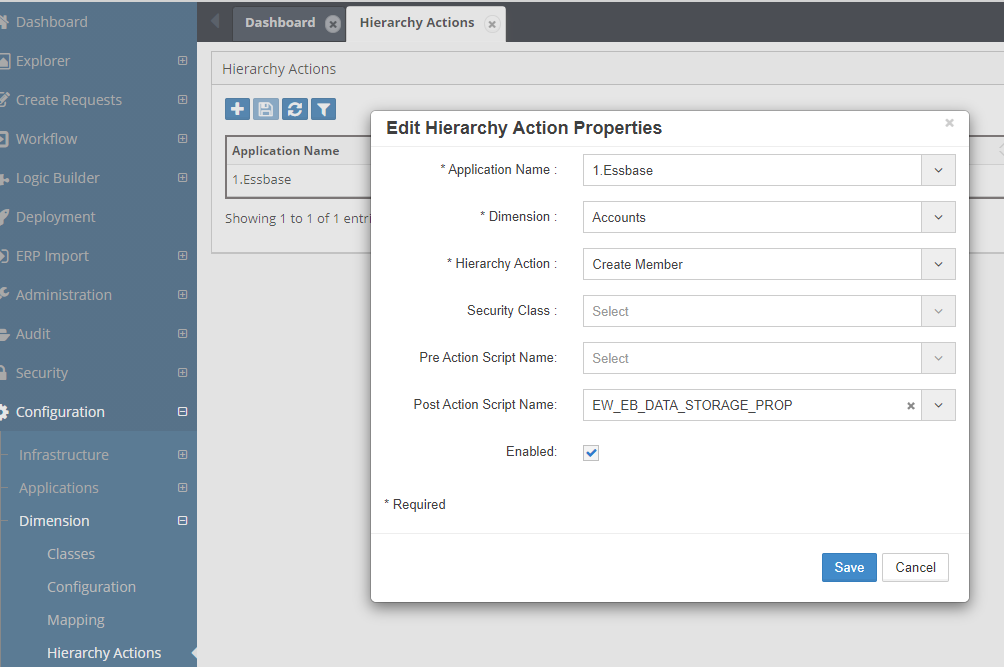

Data Storage Automation Configuration
Figure: Manual configuration of Data Storage automation

Script: EW_HFM_ENT_SEC_CLASS_AUTOMATION

📜 Script Details

Field Description
Script Name EW_HFM_ENT_SEC_CLASS_AUTOMATION
Application Types HFM

🎯 Purpose

This script automatically create Security Classes for Entities.

This script is provided as an example only. In this script it is assumed that the user wants to create new security class for all new entities which conform to the syntax E#####. (E followed by a 5 digit numerical value).

Customization Required

Clone this script and modify as needed. Assign this script to the Hierarchy actions such as “Create Member”.

⚙️ Configuration

  • Manual configuration is required
  • Assign the (cloned) script to the appropriate Hierarchy Action
  • Applicable only to HFM applications

Please refer to the example below for the manual assignment configuration.

HFM Security Class Automation
Figure: Security class automation configuration
