Dimension Mapping Examples

This page provides real-world examples of Dimension Mapping scripts for common scenarios. Each example includes the complete code, configuration steps, and testing approach.

Example 1: Simple Name Prefix Mapping

Scenario: Add application prefix to all members when mapping from HFM to Planning.

Script Code

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_ADD_APP_PREFIX';
  l_prefix VARCHAR2(10);

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  log('Processing member: ' || ew_lb_api.g_member_name);
  log('Action code: ' || ew_lb_api.g_action_code);

  -- Determine prefix based on source application
  l_prefix := CASE ew_lb_api.g_src_app_name
                WHEN 'HFM_PROD' THEN 'HFM_'
                WHEN 'HFM_DEV' THEN 'HFMD_'
                ELSE 'OTH_'
              END;

  -- Apply prefix to member name
  IF ew_lb_api.g_action_code IN ('CMC', 'CMS', 'RNM') THEN
    ew_lb_api.g_out_tgt_new_member_name :=
      l_prefix || ew_lb_api.g_member_name;
    log('Mapped to: ' || ew_lb_api.g_out_tgt_new_member_name);
  END IF;

  -- For rename, handle old name
  IF ew_lb_api.g_action_code = 'RNM' THEN
    ew_lb_api.g_out_tgt_old_member_name :=
      l_prefix || ew_lb_api.g_member_name;
  END IF;

  -- Use Smart Sync for hierarchy structure
  ew_hierarchy.set_dim_mapping_method(
    p_mapping_method => 'SMARTSYNC',
    x_status        => ew_lb_api.g_status,
    x_message       => ew_lb_api.g_message
  );

EXCEPTION
  WHEN OTHERS THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Error: ' || SQLERRM;
    log('Error in script: ' || SQLERRM);
END;

Configuration

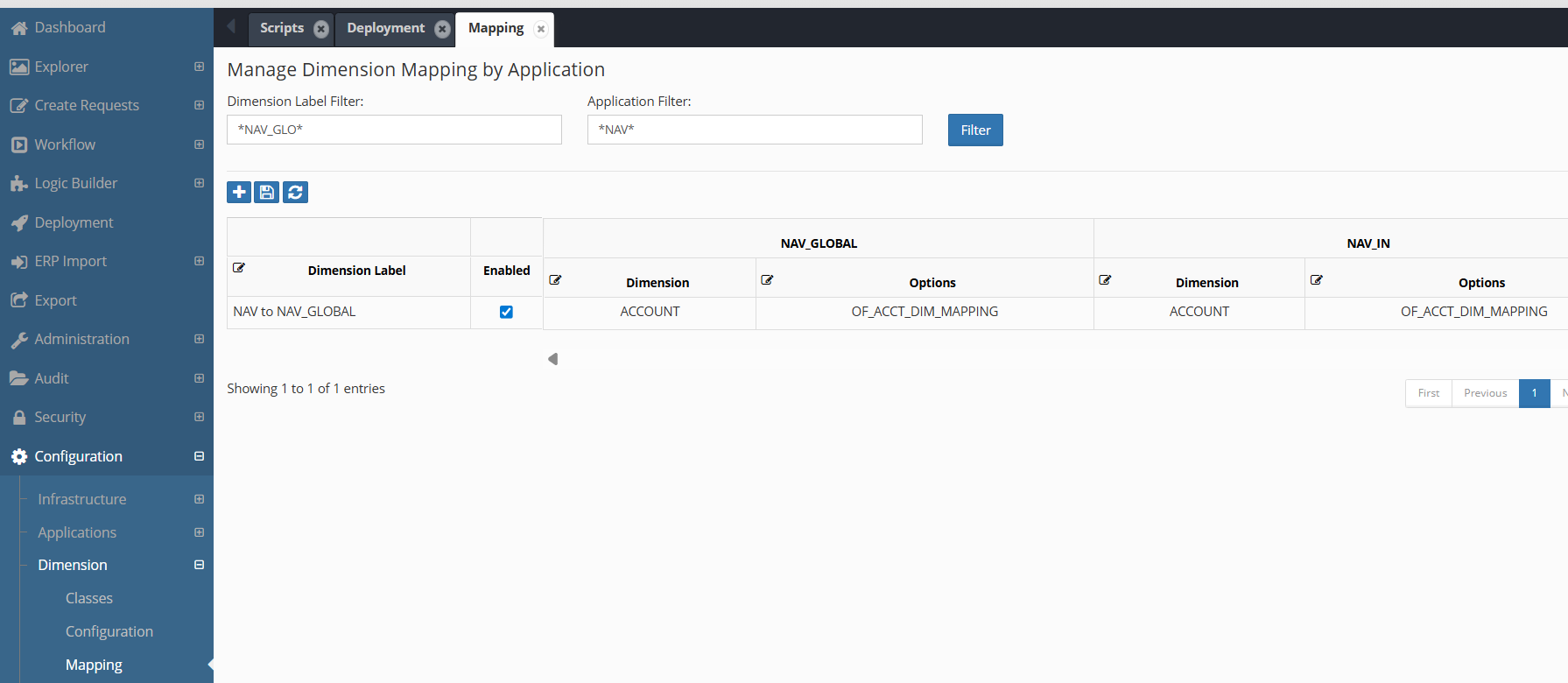

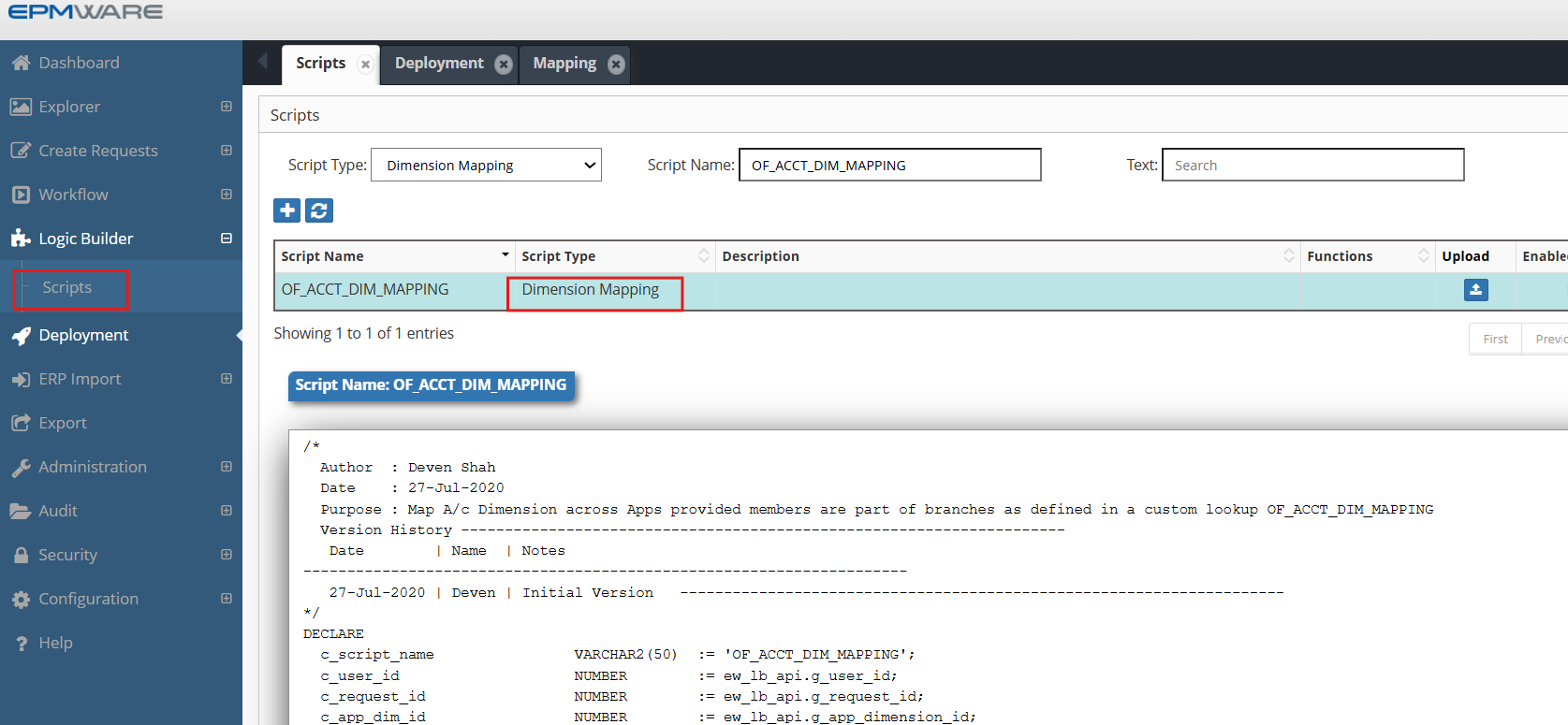

1. Create script in Logic Builder with type "Dimension Mapping"
2. Navigate to Configuration → Dimension → Mapping
3. Select source: HFM_PROD / Entity dimension
4. Select target: PLANNING_PROD / Entity dimension
5. Choose "Logic Script" and select this script

Testing

Create member "Region01" in HFM → Creates "HFM_Region01" in Planning

---

Example 2: Selective Branch Mapping

Scenario: Map only specific branches of the hierarchy based on member attributes.

Script Code

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_SELECTIVE_BRANCHES';
  l_map_branch BOOLEAN := FALSE;
  l_branch_root VARCHAR2(100);

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

  FUNCTION should_map_branch(p_member_name VARCHAR2) RETURN BOOLEAN IS
    l_property_value VARCHAR2(100);
  BEGIN
    -- Check if member has specific property value
    l_property_value := ew_hierarchy.get_member_prop_value(
      p_app_name    => ew_lb_api.g_src_app_name,
      p_dim_name    => ew_lb_api.g_src_dim_name,
      p_member_name => p_member_name,
      p_prop_label  => 'MapToPlanning'
    );

    RETURN (l_property_value = 'Y');
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  log('Evaluating member: ' || ew_lb_api.g_member_name);

  -- Check if this branch should be mapped
  -- Walk up the hierarchy to find a mapping flag
  l_branch_root := ew_lb_api.g_member_name;

  WHILE l_branch_root IS NOT NULL LOOP
    IF should_map_branch(l_branch_root) THEN
      l_map_branch := TRUE;
      log('Found mapping flag at: ' || l_branch_root);
      EXIT;
    END IF;

    -- Get parent
    l_branch_root := ew_hierarchy.get_primary_parent_name(
      p_app_dimension_id => ew_lb_api.g_app_dimension_id,
      p_member_name     => l_branch_root
    );
  END LOOP;

  IF l_map_branch THEN
    -- Proceed with mapping
    log('Mapping member to target');

    -- Optional: Transform the name
    IF ew_lb_api.g_member_name LIKE 'DEPT_%' THEN
      ew_lb_api.g_out_tgt_new_member_name :=
        'PLN_' || ew_lb_api.g_member_name;
    END IF;

    -- Use Smart Sync
    ew_hierarchy.set_dim_mapping_method(
      p_mapping_method => 'SMARTSYNC',
      x_status        => ew_lb_api.g_status,
      x_message       => ew_lb_api.g_message
    );
  ELSE
    -- Skip this member
    log('Skipping member - no mapping flag found');
    ew_lb_api.g_out_ignore_flag := 'Y';
    ew_lb_api.g_message := 'Branch not configured for mapping';
  END IF;

EXCEPTION
  WHEN OTHERS THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Error: ' || SQLERRM;
    log('Error: ' || SQLERRM);
END;

Configuration

Set "MapToPlanning" property to "Y" on root members of branches to map.

---

Example 3: Cross-Reference Table Mapping

Scenario: Use a custom mapping table to translate members between applications.

Setup Script

-- Create mapping table (run once)
CREATE TABLE custom_dim_mapping (
  source_app      VARCHAR2(50),
  source_member   VARCHAR2(100),
  target_member   VARCHAR2(100),
  target_parent   VARCHAR2(100),
  active_flag     VARCHAR2(1) DEFAULT 'Y',
  created_date    DATE DEFAULT SYSDATE,
  CONSTRAINT pk_custom_dim_mapping
    PRIMARY KEY (source_app, source_member)
);

-- Insert sample mappings
INSERT INTO custom_dim_mapping VALUES
  ('HFM_PROD', 'CC_100', 'COST_100', 'ALL_COSTS', 'Y', SYSDATE);
INSERT INTO custom_dim_mapping VALUES
  ('HFM_PROD', 'CC_200', 'COST_200', 'ALL_COSTS', 'Y', SYSDATE);
COMMIT;

Mapping Script

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_USING_XREF_TABLE';
  l_target_member VARCHAR2(100);
  l_target_parent VARCHAR2(100);

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  log('Looking up mapping for: ' || ew_lb_api.g_member_name);

  -- Lookup mapping
  BEGIN
    SELECT target_member, target_parent
    INTO l_target_member, l_target_parent
    FROM custom_dim_mapping
    WHERE source_app = ew_lb_api.g_src_app_name
    AND source_member = ew_lb_api.g_member_name
    AND active_flag = 'Y';

    log('Found mapping: ' || l_target_member || ' under ' || l_target_parent);

    -- Apply mapping
    ew_lb_api.g_out_tgt_new_member_name := l_target_member;

    IF l_target_parent IS NOT NULL THEN
      ew_lb_api.g_out_tgt_parent_member_name := l_target_parent;
    END IF;

  EXCEPTION
    WHEN NO_DATA_FOUND THEN
      log('No mapping found - using default');
      -- Use standard Smart Sync if no mapping
      ew_hierarchy.set_dim_mapping_method(
        p_mapping_method => 'SMARTSYNC',
        x_status        => ew_lb_api.g_status,
        x_message       => ew_lb_api.g_message
      );

    WHEN TOO_MANY_ROWS THEN
      ew_lb_api.g_status := ew_lb_api.g_error;
      ew_lb_api.g_message := 'Duplicate mapping found for ' ||
                              ew_lb_api.g_member_name;
  END;

EXCEPTION
  WHEN OTHERS THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Error: ' || SQLERRM;
    log('Error: ' || SQLERRM);
END;

---

Example 4: Level-Based Reorganization

Scenario: Reorganize hierarchy based on member levels during mapping.

Script Code

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_LEVEL_REORG';
  l_member_level NUMBER;
  l_member_gen NUMBER;

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  -- Get member level and generation
  l_member_level := ew_statistics.get_level(
    p_app_dimension_id => ew_lb_api.g_app_dimension_id,
    p_member_id       => ew_lb_api.g_member_id
  );

  l_member_gen := ew_statistics.get_generation(
    p_app_dimension_id => ew_lb_api.g_app_dimension_id,
    p_member_id       => ew_lb_api.g_member_id
  );

  log('Member: ' || ew_lb_api.g_member_name ||
      ' Level: ' || l_member_level ||
      ' Gen: ' || l_member_gen);

  -- Reorganize based on level
  IF ew_lb_api.g_action_code IN ('CMC', 'CMS') THEN

    IF l_member_level = 0 THEN
      -- All base members under one parent
      ew_lb_api.g_out_tgt_parent_member_name := 'ALL_BASE_MEMBERS';
      ew_lb_api.g_out_tgt_new_member_name :=
        'BASE_' || ew_lb_api.g_member_name;

    ELSIF l_member_level <= 2 THEN
      -- Mid-level members under summary parent
      ew_lb_api.g_out_tgt_parent_member_name := 'MID_LEVEL_SUMMARY';
      ew_lb_api.g_out_tgt_new_member_name :=
        'MID_' || ew_lb_api.g_member_name;

    ELSIF l_member_gen <= 3 THEN
      -- Top level members keep structure
      ew_hierarchy.set_dim_mapping_method(
        p_mapping_method => 'SMARTSYNC',
        x_status        => ew_lb_api.g_status,
        x_message       => ew_lb_api.g_message
      );
      RETURN;

    ELSE
      -- Other members in catch-all
      ew_lb_api.g_out_tgt_parent_member_name := 'OTHER_MEMBERS';
    END IF;

    log('Mapped to parent: ' || ew_lb_api.g_out_tgt_parent_member_name);
  END IF;

EXCEPTION
  WHEN OTHERS THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Error: ' || SQLERRM;
    log('Error: ' || SQLERRM);
END;

---

Example 5: Conditional Property Sync

Scenario: Map members and selectively sync properties based on conditions.

Script Code

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_WITH_PROP_SYNC';
  l_sync_properties BOOLEAN := FALSE;
  l_member_type VARCHAR2(50);

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

  PROCEDURE sync_selected_properties IS
    l_prop_value VARCHAR2(4000);
  BEGIN
    -- Sync specific properties only

    -- Get and set Alias
    l_prop_value := ew_hierarchy.get_member_prop_value(
      p_app_name    => ew_lb_api.g_src_app_name,
      p_dim_name    => ew_lb_api.g_src_dim_name,
      p_member_name => ew_lb_api.g_member_name,
      p_prop_label  => 'Alias:English'
    );

    IF l_prop_value IS NOT NULL THEN
      -- Set in target (would need additional API call)
      log('Syncing alias: ' || l_prop_value);
    END IF;

    -- Get and set custom property
    l_prop_value := ew_hierarchy.get_member_prop_value(
      p_app_name    => ew_lb_api.g_src_app_name,
      p_dim_name    => ew_lb_api.g_src_dim_name,
      p_member_name => ew_lb_api.g_member_name,
      p_prop_label  => 'Cost_Center_Type'
    );

    IF l_prop_value IS NOT NULL THEN
      log('Syncing CC Type: ' || l_prop_value);
    END IF;
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  log('Processing: ' || ew_lb_api.g_member_name);

  -- Determine member type
  IF ew_lb_api.g_member_name LIKE 'CC_%' THEN
    l_member_type := 'COST_CENTER';
    l_sync_properties := TRUE;
  ELSIF ew_lb_api.g_member_name LIKE 'PC_%' THEN
    l_member_type := 'PROFIT_CENTER';
    l_sync_properties := TRUE;
  ELSE
    l_member_type := 'OTHER';
    l_sync_properties := FALSE;
  END IF;

  -- Map member with type prefix
  ew_lb_api.g_out_tgt_new_member_name :=
    l_member_type || '_' || ew_lb_api.g_member_name;

  -- Sync hierarchy
  ew_hierarchy.set_dim_mapping_method(
    p_mapping_method => 'SMARTSYNC',
    x_status        => ew_lb_api.g_status,
    x_message       => ew_lb_api.g_message
  );

  -- Conditionally sync properties
  IF l_sync_properties AND ew_lb_api.g_status = ew_lb_api.g_success THEN
    sync_selected_properties();
  END IF;

  log('Mapping complete');

EXCEPTION
  WHEN OTHERS THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Error: ' || SQLERRM;
    log('Error: ' || SQLERRM);
END;

---

Example 6: Error Handling and Validation

Scenario: Comprehensive error handling with validation before mapping.

Script Code

DECLARE
  c_script_name CONSTANT VARCHAR2(100) := 'MAP_WITH_VALIDATION';
  l_errors VARCHAR2(4000);
  l_warnings VARCHAR2(4000);

  PROCEDURE log(p_msg VARCHAR2) IS
  BEGIN
    ew_debug.log(p_text      => p_msg,
                 p_source_ref => c_script_name);
  END;

  PROCEDURE add_error(p_msg VARCHAR2) IS
  BEGIN
    IF l_errors IS NOT NULL THEN
      l_errors := l_errors || '; ';
    END IF;
    l_errors := l_errors || p_msg;
  END;

  PROCEDURE add_warning(p_msg VARCHAR2) IS
  BEGIN
    IF l_warnings IS NOT NULL THEN
      l_warnings := l_warnings || '; ';
    END IF;
    l_warnings := l_warnings || p_msg;
  END;

  FUNCTION validate_member RETURN BOOLEAN IS
    l_valid BOOLEAN := TRUE;
  BEGIN
    -- Check member name length
    IF LENGTH(ew_lb_api.g_member_name) > 50 THEN
      add_error('Member name too long (max 50 chars)');
      l_valid := FALSE;
    END IF;

    -- Check for invalid characters
    IF REGEXP_LIKE(ew_lb_api.g_member_name, '[^A-Za-z0-9_]') THEN
      add_error('Member name contains invalid characters');
      l_valid := FALSE;
    END IF;

    -- Check if parent exists in target (for create actions)
    IF ew_lb_api.g_action_code IN ('CMC', 'CMS') THEN
      IF ew_lb_api.g_parent_member_name IS NOT NULL THEN
        IF ew_hierarchy.chk_member_exists(
             p_app_dimension_id => ew_lb_api.g_tgt_dim_id,
             p_member_name     => ew_lb_api.g_parent_member_name
           ) = 'N' THEN
          add_error('Parent does not exist in target: ' ||
                    ew_lb_api.g_parent_member_name);
          l_valid := FALSE;
        END IF;
      END IF;
    END IF;

    -- Check for duplicate in target (warning only)
    IF ew_lb_api.g_action_code = 'CMC' THEN
      IF ew_hierarchy.chk_member_exists(
           p_app_dimension_id => ew_lb_api.g_tgt_dim_id,
           p_member_name     => ew_lb_api.g_member_name
         ) = 'Y' THEN
        add_warning('Member already exists in target');
      END IF;
    END IF;

    RETURN l_valid;
  END;

BEGIN
  -- Initialize
  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;
  l_errors := NULL;
  l_warnings := NULL;

  log('Starting validation for: ' || ew_lb_api.g_member_name);

  -- Validate before processing
  IF NOT validate_member() THEN
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Validation failed: ' || l_errors;
    log('Validation errors: ' || l_errors);
    RETURN;
  END IF;

  -- Log warnings but continue
  IF l_warnings IS NOT NULL THEN
    log('Warnings: ' || l_warnings);
  END IF;

  -- Proceed with mapping
  BEGIN
    -- Custom transformation
    IF ew_lb_api.g_member_name LIKE 'TEMP_%' THEN
      -- Skip temporary members
      ew_lb_api.g_out_ignore_flag := 'Y';
      ew_lb_api.g_message := 'Temporary member skipped';
    ELSE
      -- Normal mapping
      ew_hierarchy.set_dim_mapping_method(
        p_mapping_method => 'SMARTSYNC',
        x_status        => ew_lb_api.g_status,
        x_message       => ew_lb_api.g_message
      );
    END IF;

  EXCEPTION
    WHEN OTHERS THEN
      -- Catch any mapping errors
      ew_lb_api.g_status := ew_lb_api.g_error;
      ew_lb_api.g_message := 'Mapping error: ' || SQLERRM;
      log('Mapping error: ' || SQLERRM);
  END;

  -- Add warnings to message if successful
  IF ew_lb_api.g_status = ew_lb_api.g_success AND l_warnings IS NOT NULL THEN
    ew_lb_api.g_message := NVL(ew_lb_api.g_message, 'Success') ||
                           ' (Warnings: ' || l_warnings || ')';
  END IF;

  log('Processing complete. Status: ' || ew_lb_api.g_status);

EXCEPTION
  WHEN OTHERS THEN
    -- Global exception handler
    ew_lb_api.g_status := ew_lb_api.g_error;
    ew_lb_api.g_message := 'Unexpected error: ' || SQLERRM;
    log('Unexpected error: ' || SQLERRM);
    log('Error backtrace: ' || DBMS_UTILITY.FORMAT_ERROR_BACKTRACE);
END;

---

Testing Guidelines

Unit Test Cases

For each mapping script, test:

1. Create Member as Child (CMC)
2. Create new member under existing parent
3. Verify name transformation

4. Check parent assignment

5. Delete Member (DM)

6. Delete member from source

7. Verify removal from target

8. Rename Member (RNM)

9. Rename in source

10. Verify rename in target with transformation

11. Move Member (ZC)

12. Change parent in source

13. Verify move in target

14. Edge Cases

15. Null parent (root level)
16. Special characters in names
17. Very long member names
18. Circular references

Debug and Monitoring

Enable debug logging during testing:

-- In your script
ew_debug.log('=== Test Case: Create Member ===');
ew_debug.log('Input: ' || ew_lb_api.g_member_name);
ew_debug.log('Output: ' || ew_lb_api.g_out_tgt_new_member_name);

View results in Debug Messages report filtered by script name.

Next Steps

• Input Parameters - Complete parameter reference
• Output Parameters - Control mapping behavior
• API Reference - Supporting APIs

---

Development Tip

Start with a simple mapping script and gradually add complexity. Always test with a small subset of members before running on the entire dimension.
