💡On Submit Workflow Task Script Examples

Requirement : Ensure Base Members under the Primary Branch have their shared instance under the Alternate branch. If not, then throw an error.

/* Version History  ---------------------------------------------------------------------
   Date      | Name  | Notes ---------------------------------------------------------------------
   20-Jan-21 | Deven | Initial Version ---------------------------------------------------------------------
*/
DECLARE
  c_script_name        VARCHAR2(50)  := 'OF_ON_SUBMIT_WF';
  c_user_id            NUMBER        := ew_lb_api.g_user_id;
  c_request_id         VARCHAR2(50)  := ew_lb_api.g_request_id;
  c_app_name           VARCHAR2(50)  := 'OF_HFM';
  --
  --
  PROCEDURE log (p_msg IN VARCHAR2)
  IS
  BEGIN
    ew_debug.log(p_text       => p_msg
                ,p_source_ref => c_script_name
                );
  END;
  --
  PROCEDURE add_err (p_line_num IN VARCHAR2, p_message IN VARCHAR2)
  IS
  BEGIN
     ew_lb_api.ins_req_val_rec
                           (p_line_num  => p_line_num
                           ,p_message   => p_message
                           ,p_qa_name   => c_script_name
                           );
     ew_lb_api.g_status := ew_lb_api.g_error;
  END add_err;
  --
  PROCEDURE chk_shared_members (p_dim_name   IN VARCHAR2
                               ,p_store_branch IN VARCHAR2
                               ,p_share_branch IN VARCHAR2
                               )
  IS
    CURSOR cur
    IS
      SELECT *
      FROM ew_request_line_members_v l
      WHERE 1=1
        AND l.request_id  = c_request_id
        AND l.status      <> 'X' -- not cancelled lines
        AND l.app_name    = c_wmt_app_name
        AND l.dim_name    = p_dim_name
        AND l.action_code IN ('CMC','CMS') -- Create member as Child or Sibling
        AND ew_hierarchy.is_base_member(l.member_id) = 'Y'
        -- Check whether the member exists under Primary branch
        AND ew_hierarchy.chk_primary_branch_exists
                  (p_app_dimension_id   => l.app_dimension_id
                  ,p_parent_member_name => p_store_branch
                  ,p_member_name        => l.member_name
                  )  = 'Y'
        -- But not under Alternate branch
        AND ew_hierarchy.chk_branch_exists
                  (p_app_dimension_id   => l.app_dimension_id
                  ,p_parent_member_name => p_share_branch
                  ,p_member_name        => l.member_name
                  )  = 'N'
      ORDER BY l.line_num
      ;
  BEGIN
    log('** Check Base '||p_dim_name||' missing Shared instance under '||p_share_branch||' branch');
    FOR rec IN cur
    LOOP
      log('Line # '||rec.line_num||' Member name : '||rec.member_name);
      add_err(rec.line_num, p_dim_name||' Base Member must have a Shared Instance under '||p_share_branch||' branch.');
    END LOOP;
  END chk_shared_members;
  --
BEGIN

  ew_lb_api.g_status := ew_lb_api.g_success;
  ew_lb_api.g_message := NULL;

  log('** Start: Validations Request ID : '||c_request_id);


  -- Check for missing Shared members in specified branches
  -- Parameters : Dimension Name
  --              Primary Branch top Member name
  --              Alternate Branch top Member name
  --
  chk_shared_members ('Detail_Account','A101_1','PK_01');

  log('** End: Validations Request ID : '||c_request_id);

END;

Configuration

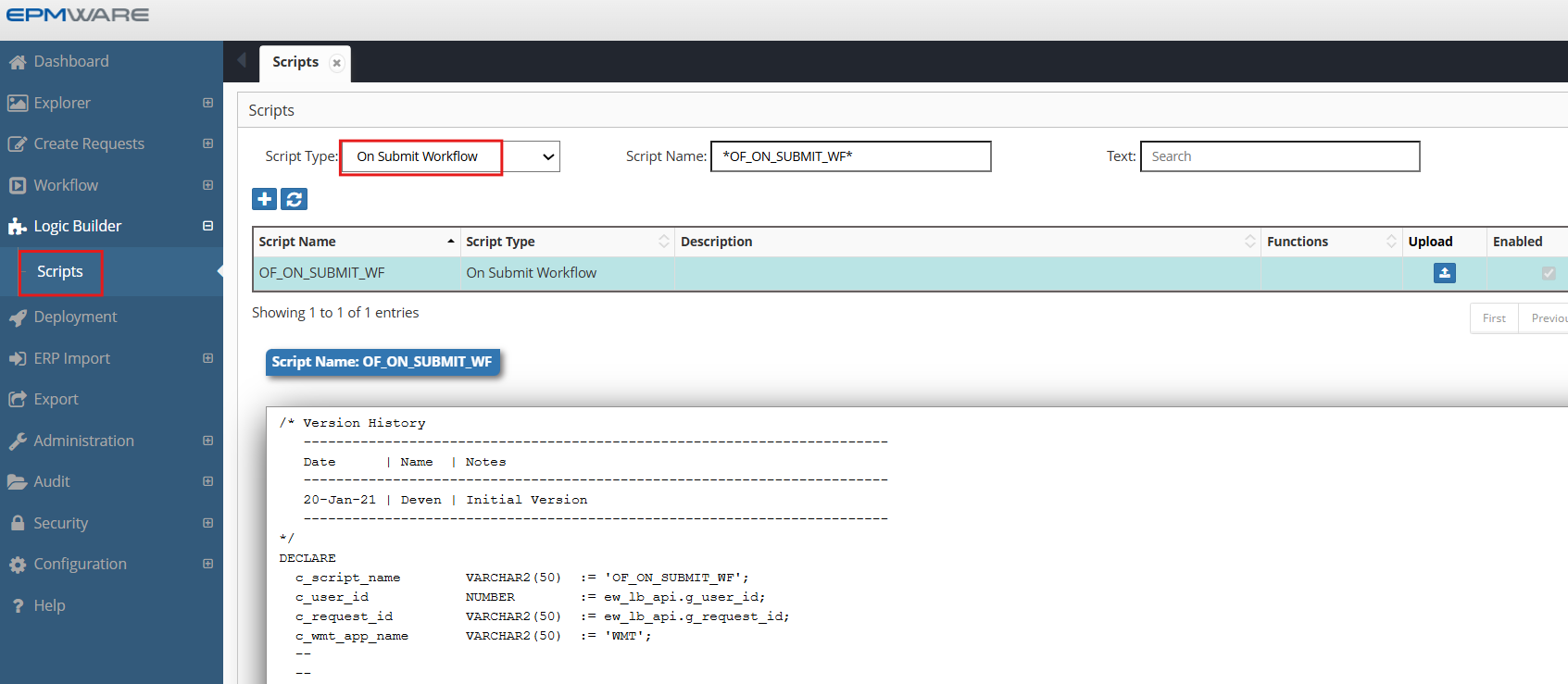

1.Create On Submit Workflow type Logic Script as shown below:

On Submit Workflow Logic Script

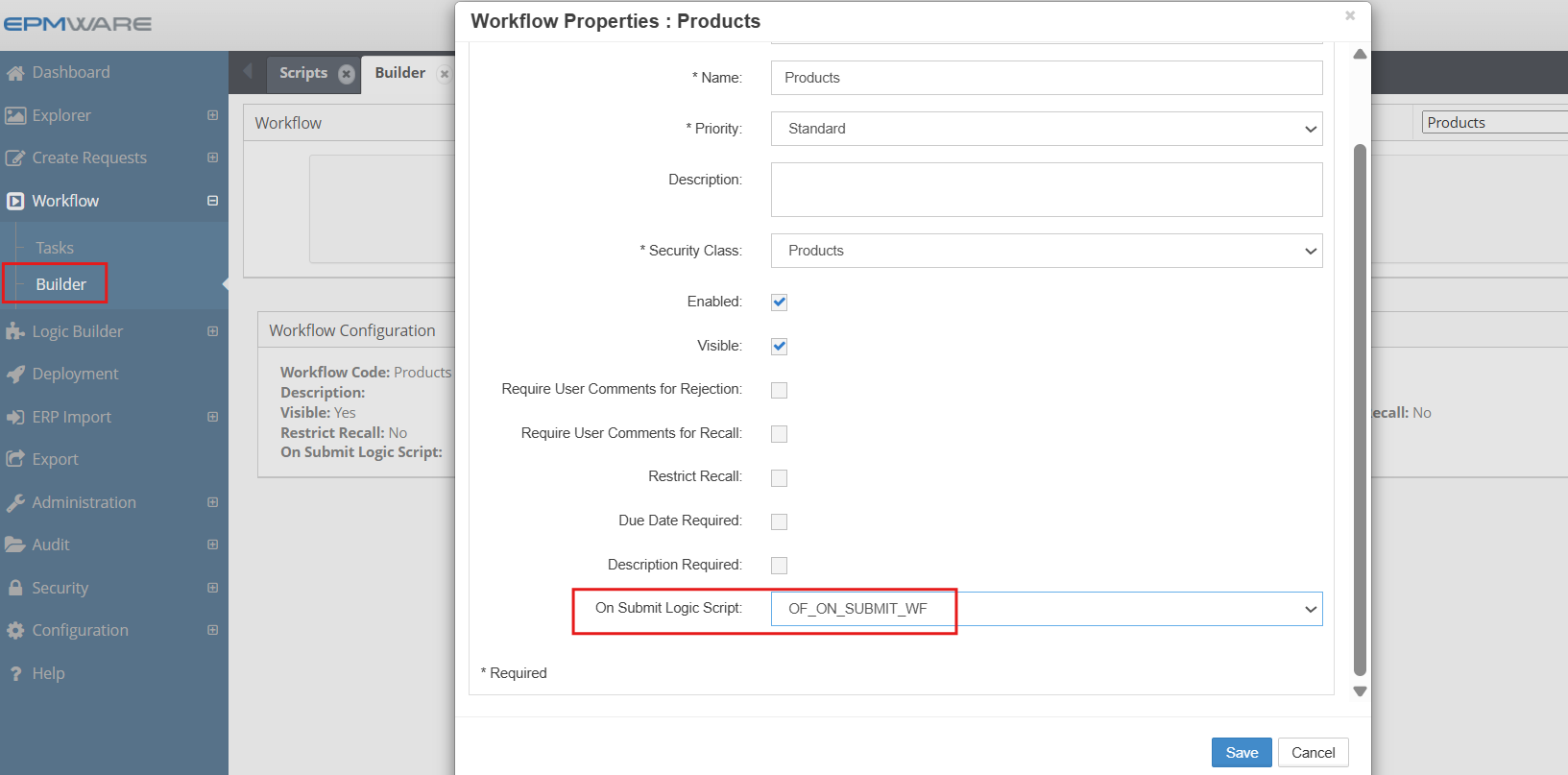

2.Assign this Logic Script in the Workflow screen as shown below:

WorkFlow -> Builder -> Select Workflow from the list to assign the Logic Script

On Submit Workflow Logic Script Association

Next Steps

Best Practice

Always test derivation scripts with edge cases including NULL values, maximum lengths, and boundary conditions before deploying to production.
